Thermal imaging cameras

Tipp Kerstin Brühl

Our smart tip

With our thermal imaging cameras and solutions you can protect your employees and control the access to your buildings.
Tipp Kerstin Brühl

Your distribution partner for thermal imaging cameras

Corona screening with thermal imaging cameras

Based on a thermal imaging camera and a HD camera which is integrated in the same housing, our AI-based algorithm quickly and accurately detects temperature differences over a wide working range. Thus, persons with an elevated temperature can be detected, which helps to screen potential cases of coronavirus. Our thermal imaging cameras allow direct temperature measurements on entering a building.

Our solution

You may install the thermal cameras permanently or use it as mobile hand-held temperature measuring device. You are thus well prepared for any situation.

Application areas for thermal cameras

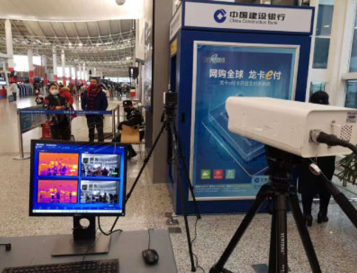

Thermal cameras can be applied as entrance controls for schools, companies, factories, offices, stores and other buildings.

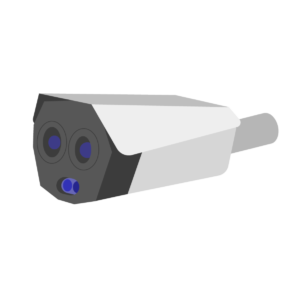

Fixed installation

Based on a thermal imaging camera and a HD camera which is integrated in the same housing, our AI-based algorithm quickly and accurately detects temperature differences over a wide working range.

Functions

Thermal & HD camera image

Sync display

Video recording function

Automatic mode – on alarm

Alarm sound

Thermal image camera - installation, connection, alert

1. Installation

For installation the measuring range is adjusted and calibrated by means of the ‘black body’ and the thermal image camera.

2. Connection

The system is transmitting the video stream to the computer using a network.

3. Alert

If a person with enhanced temperature is detected by the thermal image camera, the system issues an alarm.

Technical data of our thermal imaging cameras

Resolution
284*288 Pixel
FoV
25° x 19°
Accuracy
<0,3°C
Thermal Sensivity
<0,06°C
Temperature range
20°C ~ 50°C
Working Temperatur
0°C ~ 40°C

Ask for an offer

Get in touch with us and we will prepare your customized offer.

Detection of temperature deviations by hand-held measuring instrument

The mobile hand-held temperature measuring device enables a visual temperature display as thermal image. A stationary operation by mounting on a tripod is also possible, so the solution can be set up quickly and easily anywhere.

Functions

Automatic fever identification and alarm

Large measuring distance

Image storage (up to 100,000 thermal images)

Operating time up to 8 hours

Mobile and can be used on a tripod

Technical Data

Resolution
120*90 Pixel
FoV
50° x 38°
Accuracy
<0,5°C
Temperature measuring range
20°C ~ 50°C
Frame rate
25 FPS
LCD Display
2,4 inch
Protection
IP54
Certification
CE, ROHS, FCC
Weight
350 g
Size
194 mm * 61,5 mm * 76 mm (L*W*H)
